Cube i7 Stylus Cube i7 Stylus Images
Here are some photos of the internals of the Cube i7 Stylus from a teardown to upgrade the SSD.
-

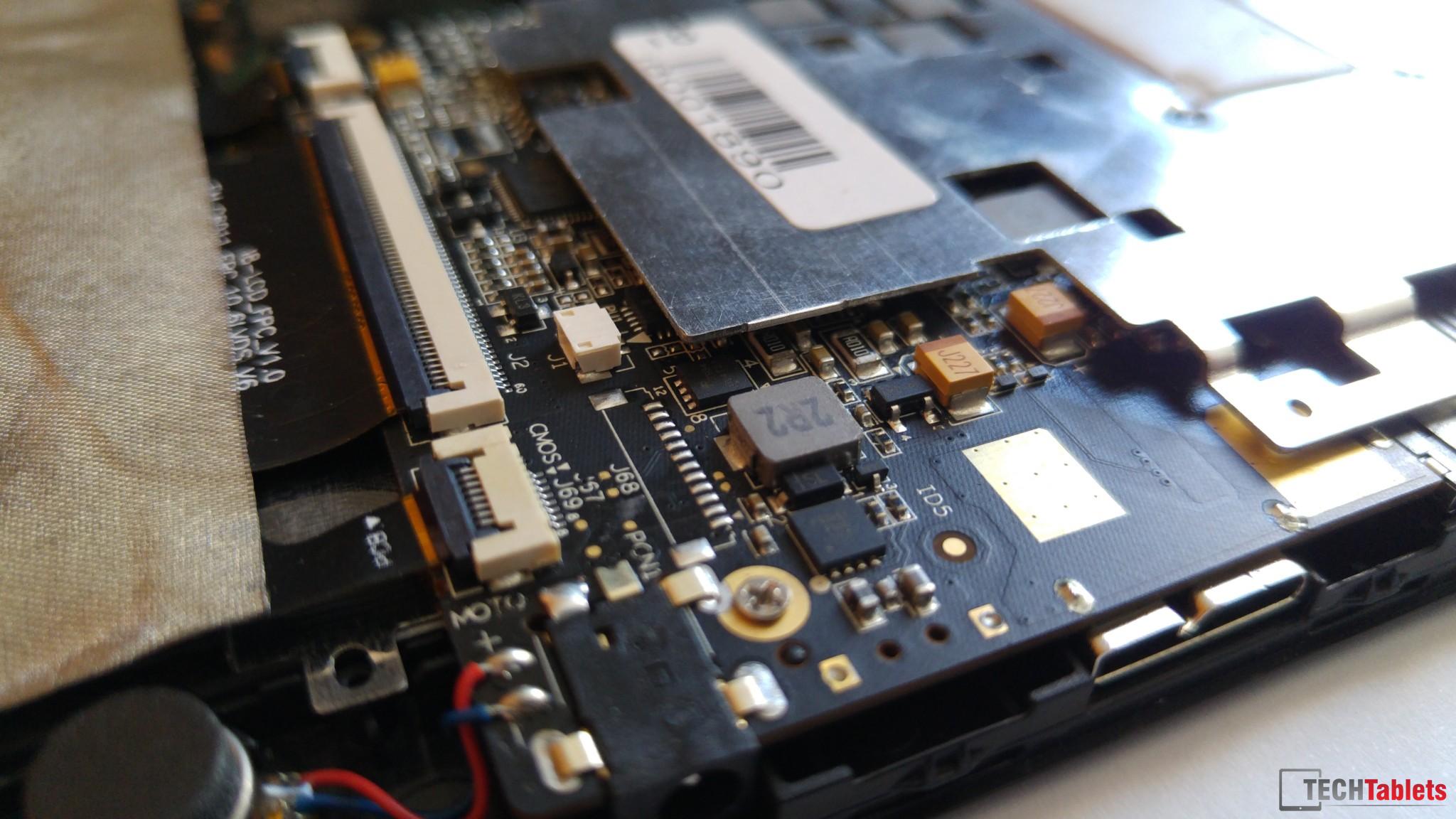

- Heat spreader and SSD.
-

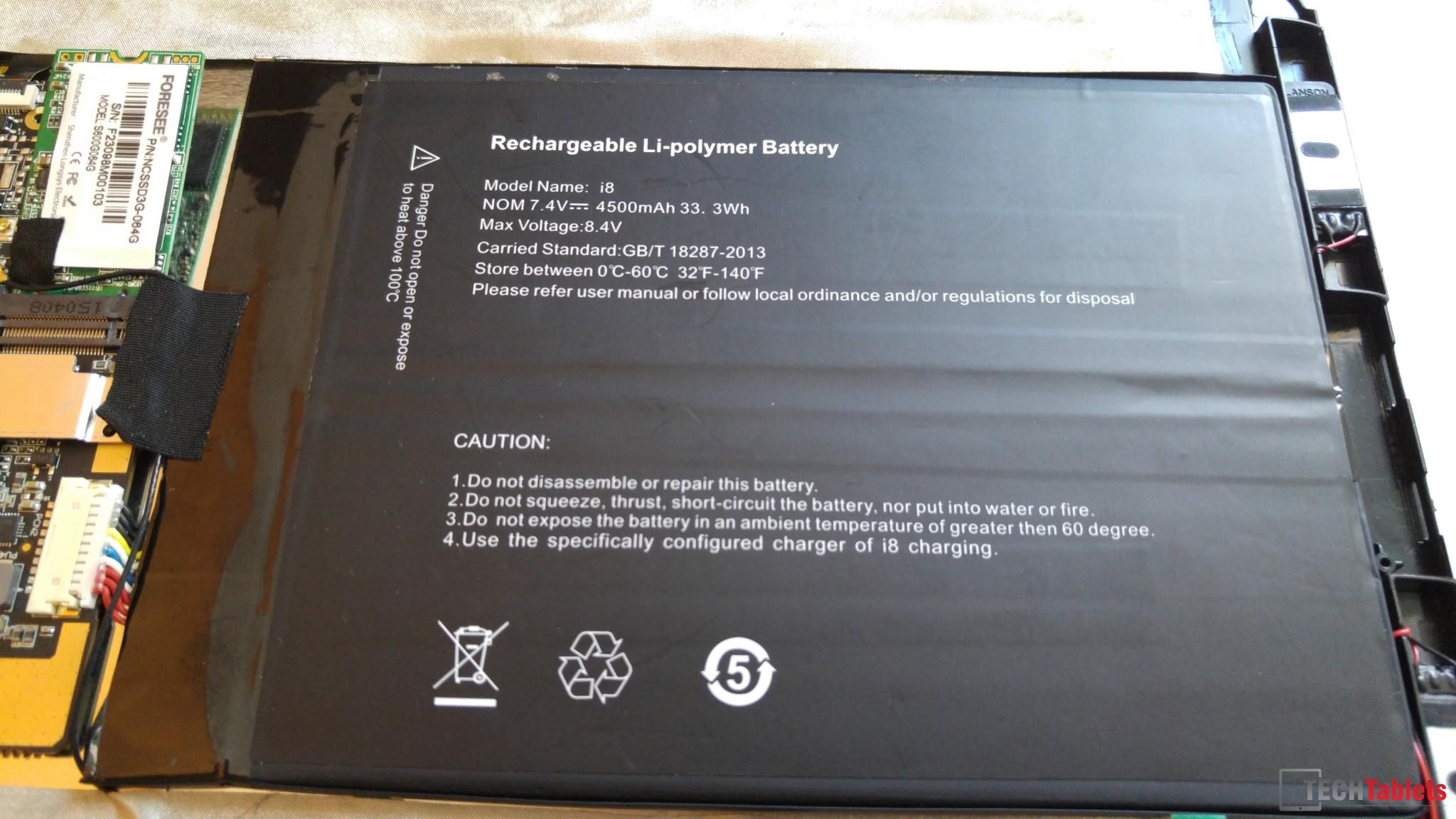

- The 2 x 4500mAH battery cells.
-

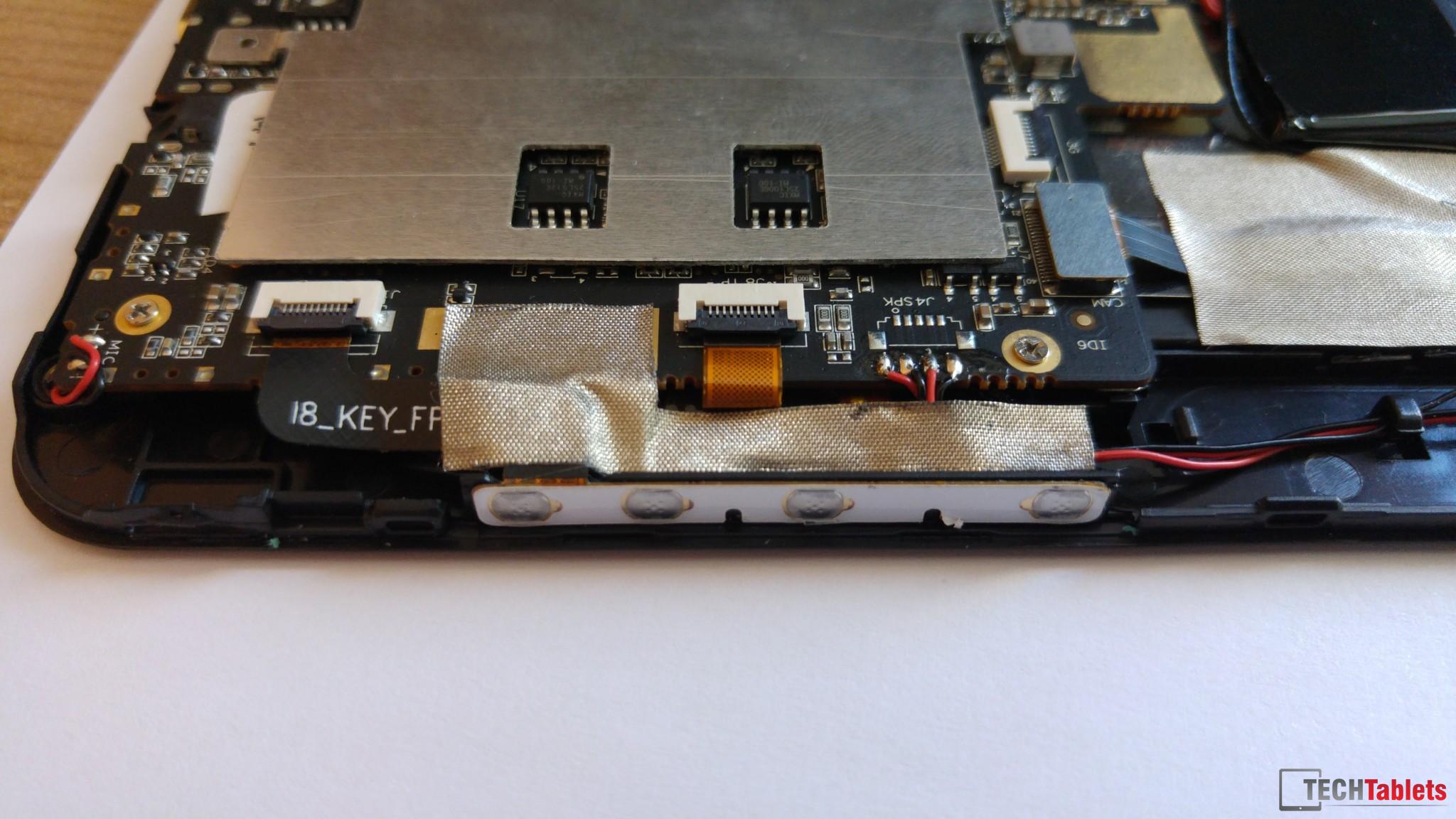

- Power, volume and reset buttons
-

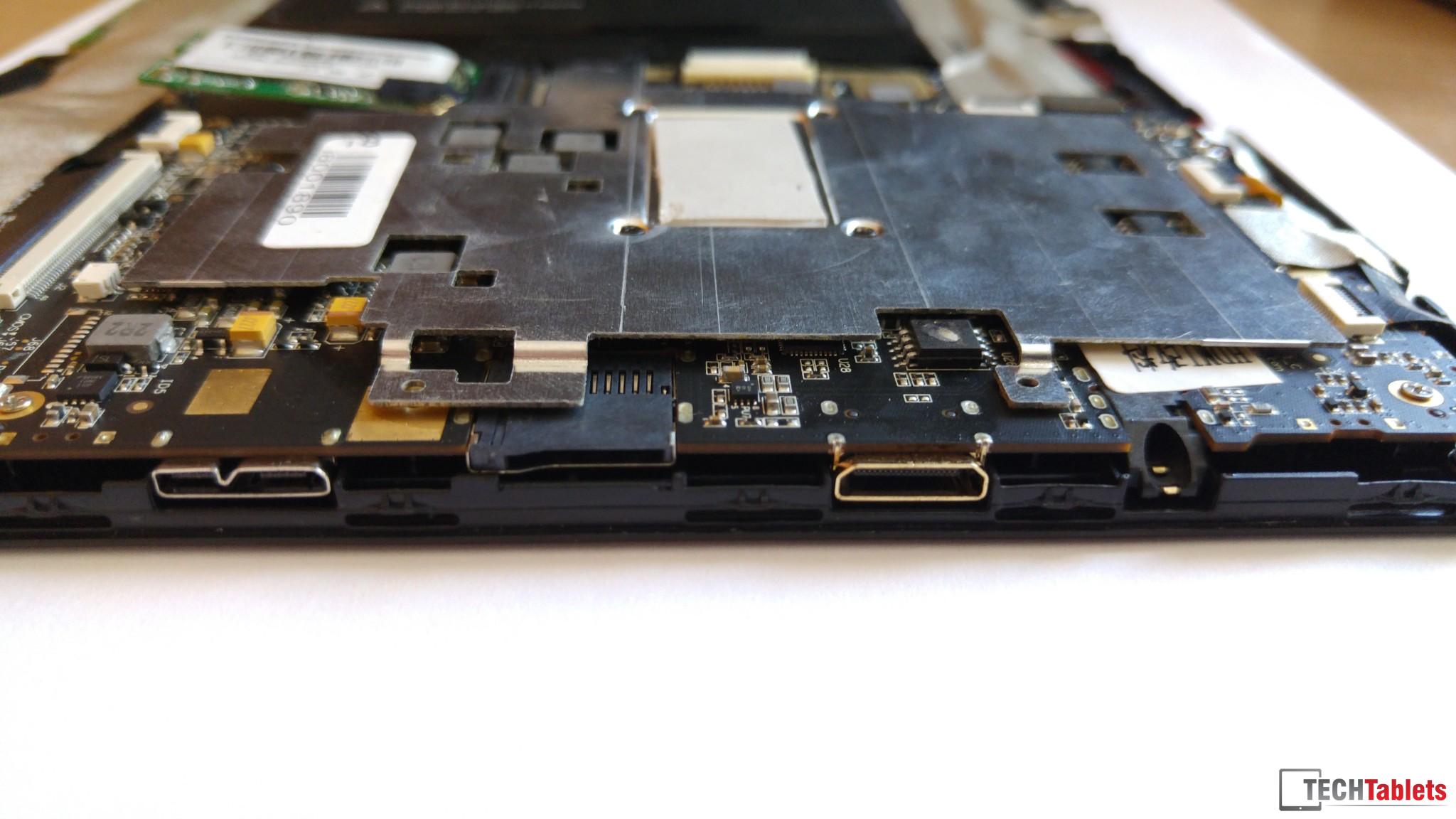

- HDMI and microsd slot
-
- Charge port.
-

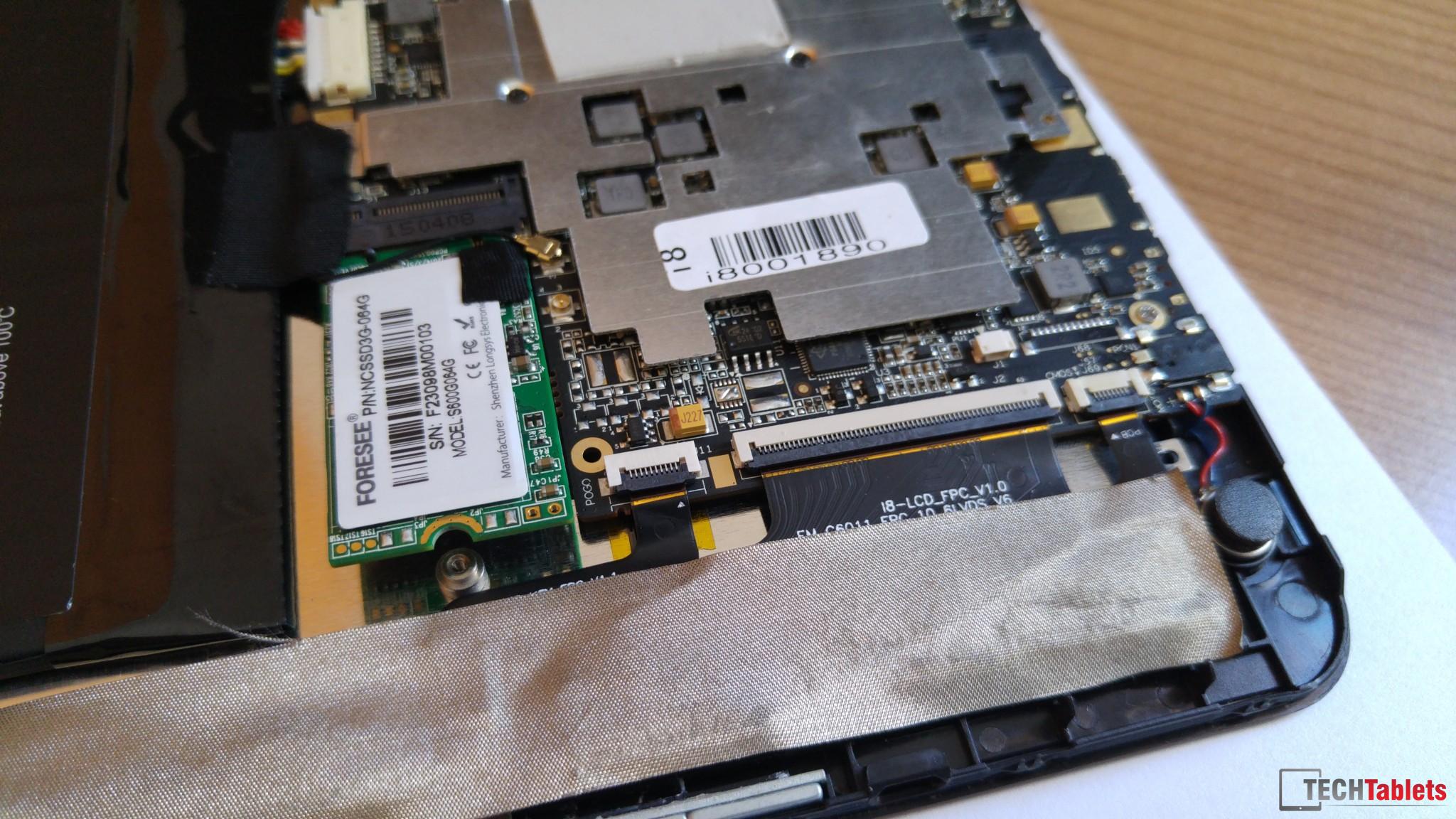

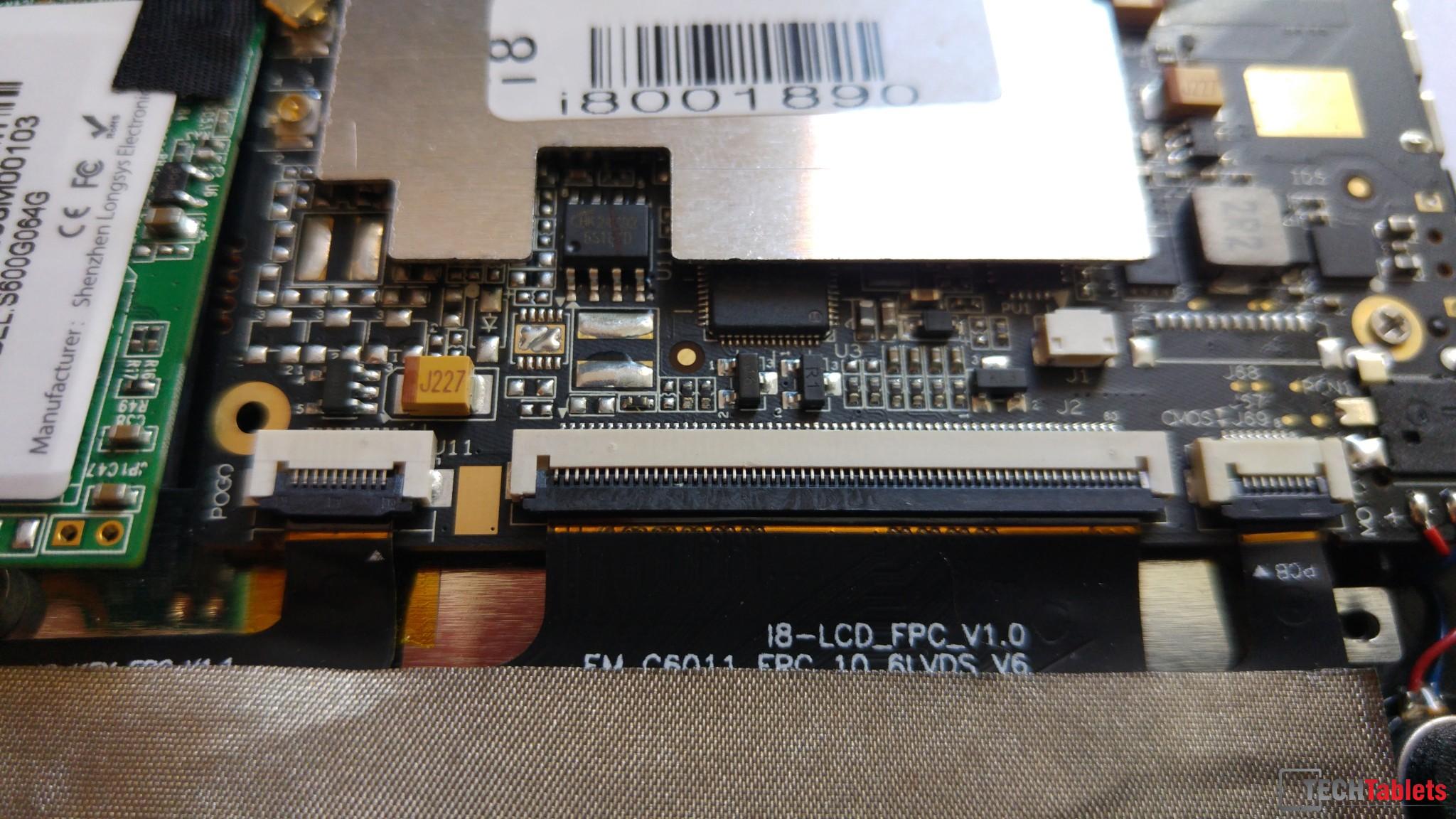

- IPS panel ribbon cable. Samsung IPS panel.
-

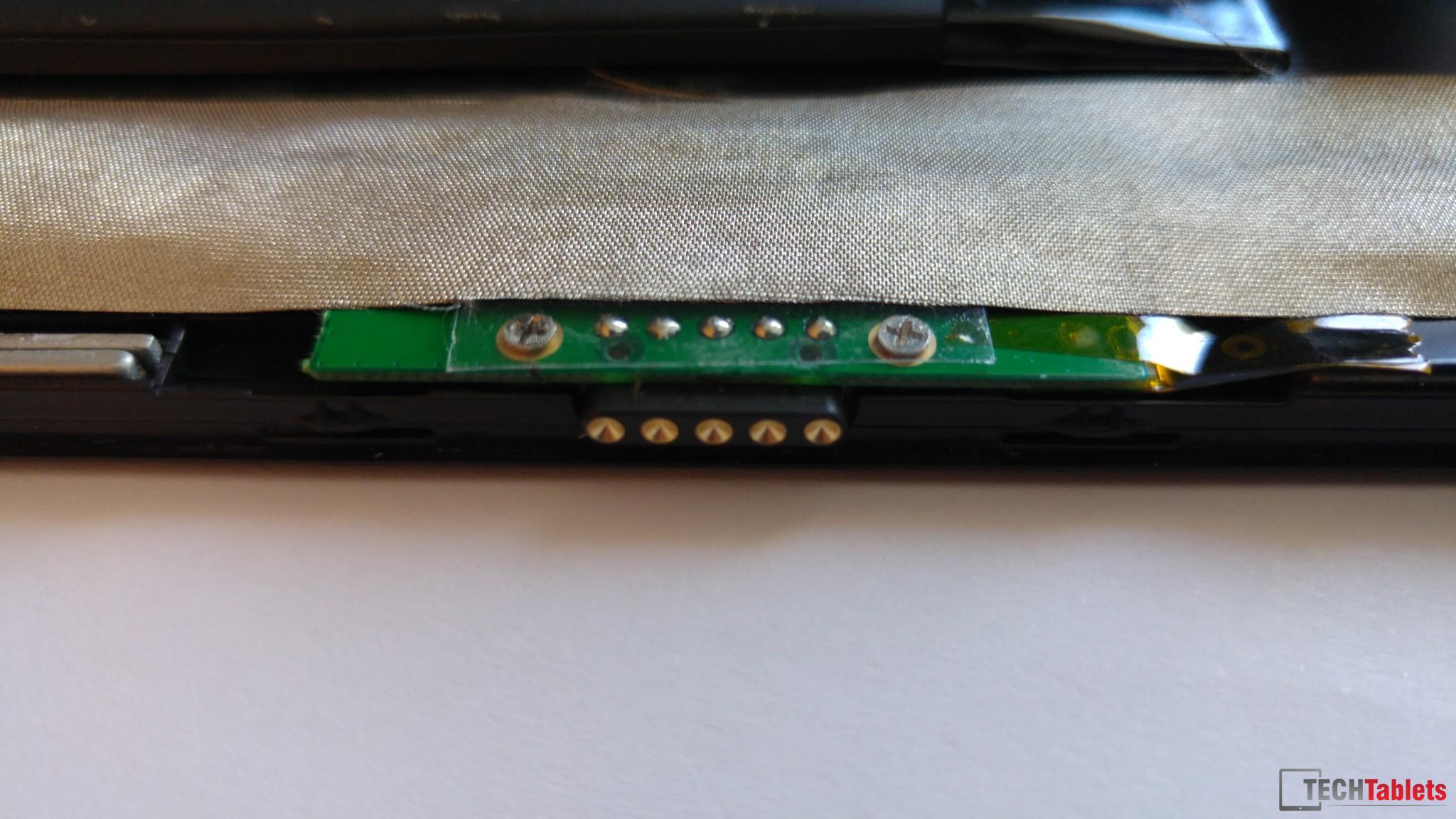

- Pogo docking connector
-

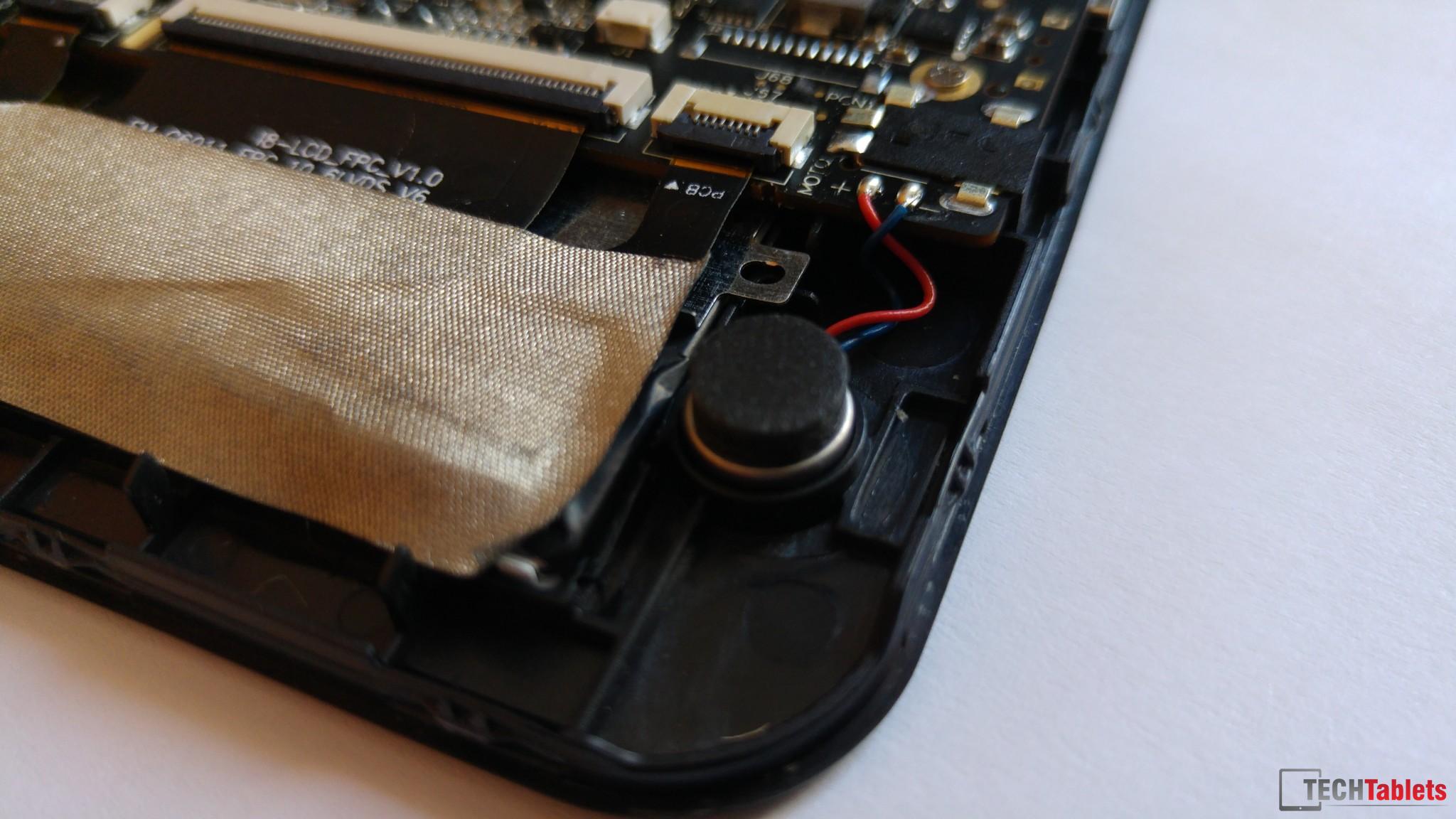

- Haptic feedback vibration motor
-
- One of the speakers
-

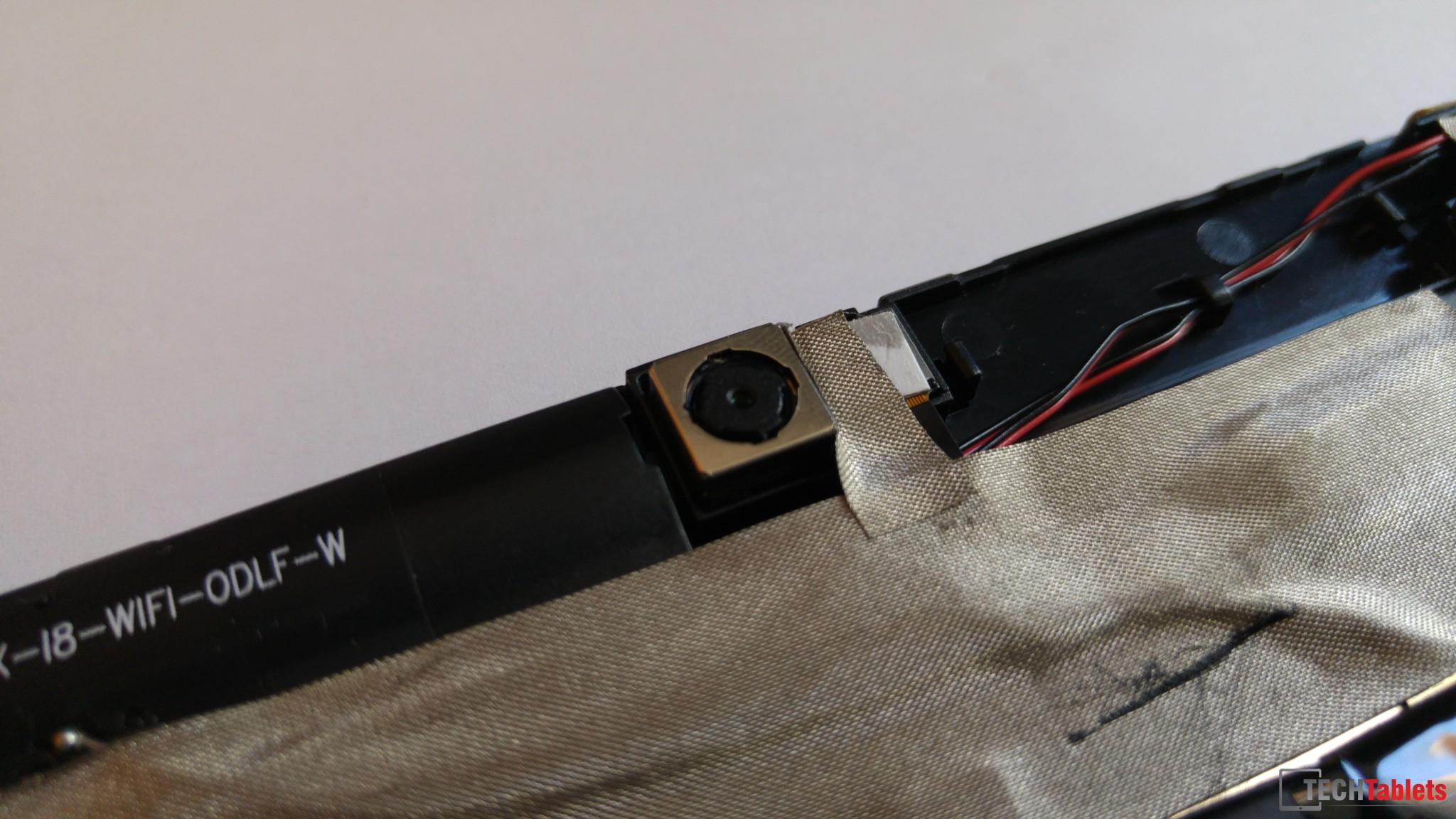

- 5MP rear camera.
-

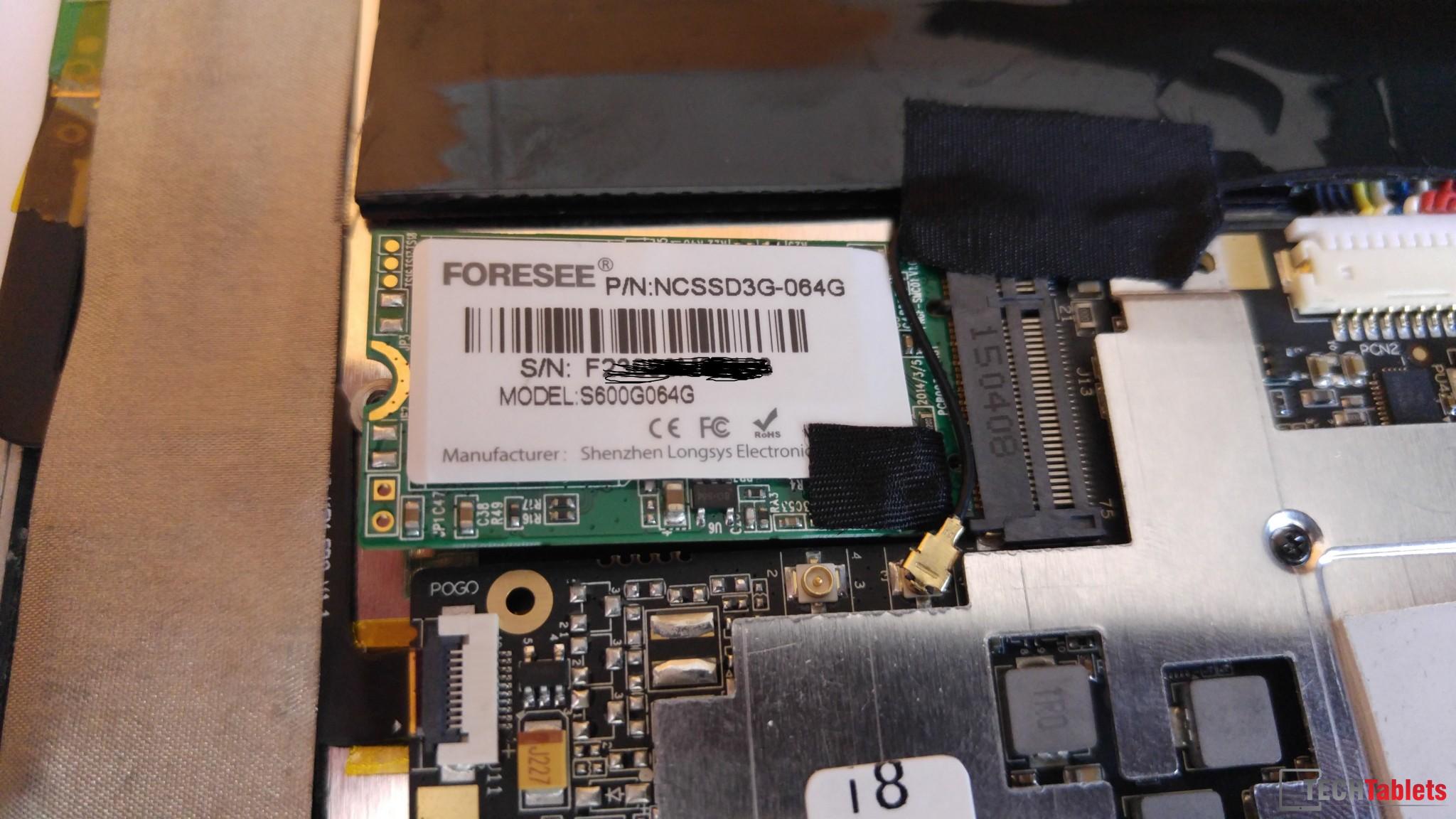

- The Stock 64GB SSD is a FORESEE Brand 2242 M.2 type.
-
- The 64GB SSD removed.
-
- The 2242 FORESEE SSD, next to my Sandisk X110 2260 M.2 drive.
